Enhanced TDS
Identification & Functionality
- Chemical Family
- Chemical Name
- Manufactured By
- Plastics & Elastomers Functions
- Technologies
- Product Families
Features & Benefits
Applications & Uses
- Markets
- Applications
- Compatible Polymers & Resins
- Plastics & Elastomers End Uses
- Use Level
- 10 - 80 phr
- Applications
EDENOL® TOT stab is a plasticizer for high temperature PVC and synthetic rubber cable compounds, high temperature technical rubber goods and low fogging PVC automotive trim. It shows low volatility, good thermal stability and moderate low temperature properties, particularly after heat aging. It is suitable in a temperature range of the application between -15 °C and +140 °C. EDENOL® TOT stab has good water resistance and low migration into other polymers and rubber. EDENOL® TOT stab is suitable for applications in PVC, NBR, HNBR, CR, CM, CSM, ACM and AEM
Properties
- Appearance
- Clear liquid
- SDS Physical and Chemical Properties
Value Units Test Method / Conditions Density (at 20°C) 0.984 - 0.99 g/cm³ - Flash Point min. 250 °C ISO 2592, Open cup Color Colorless to light yellow - - Physical State Liquid - - - Specifications
Value Units Test Method / Conditions Color 0 - 100 Hazen DIN ISO 6271 Acid Value 0 - 0.2 mg KOH/g DIN EN ISO 2114 Ester Content 97.5 - 100 % DIN 51405 Water Content 0 - 0.1 % DIN 51777 Inhibitor 0.4 - 0.6 % DIN 51405 Density (at 20 °C) 0.984 - 0.99 g/cm³ DIN 51757 Refractive Index (at 20 °C, Values remain within indicated bandwidth, but will not be measured with every batch.) 1.484 - 1.487 - DIN 51423 Fog Number (values remain within indicated bandwidth, but will not be measured with every batch.) 97 - 100 % DIN 75201 Residual Alcohol Content (values remain within indicated bandwidth, but will not be measured with every batch.) 0 - 0.2 % DIN 51405 Operating Temperature Range -15 - 140 °C -
Regulatory & Compliance
- Certifications & Compliance
Technical Details & Test Data

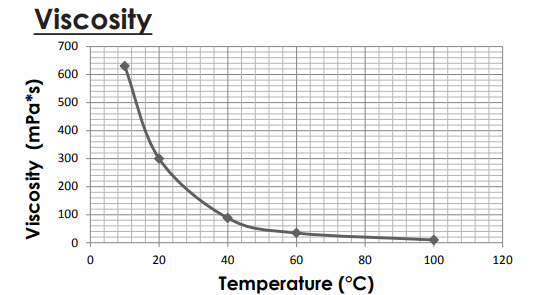

- Viscosity vs Temperature Graph

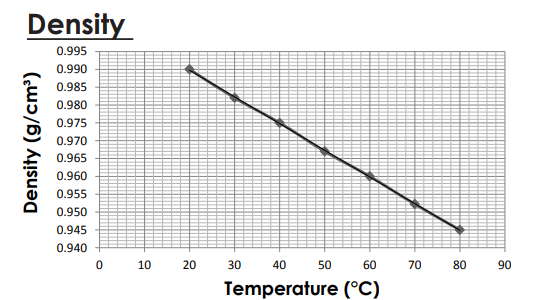

- Density vs Temperature Graph
Packaging & Availability
Storage & Handling
- Shelf Life
- 24 months
- Storage Information
It is recommended to store EDENOL® TOT stab at room temperature and to protect the product against the effects of heat and frost. If stored in original sealed packaging.
