Enhanced TDS
Identification & Functionality
- Chemical Family
- Manufactured By
- Plastics & Elastomers Functions
- Technologies
- Product Families
Features & Benefits
- Materials Features
- Product Benefits

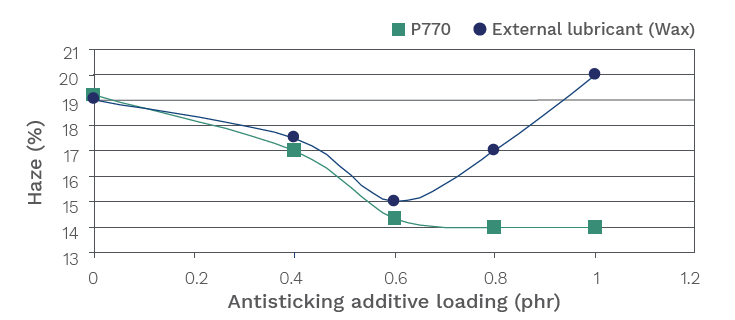

Lubricity:
- Plastistrength® 770 process aid provides excellent lubricity to vinyl formulations, while imparting high optical properties and surface quality to the end products, and retaining printability.
- Plastistrength® 770 process aid can replace external lubricants by providing efficient antisticking effect without any plate-out issue.

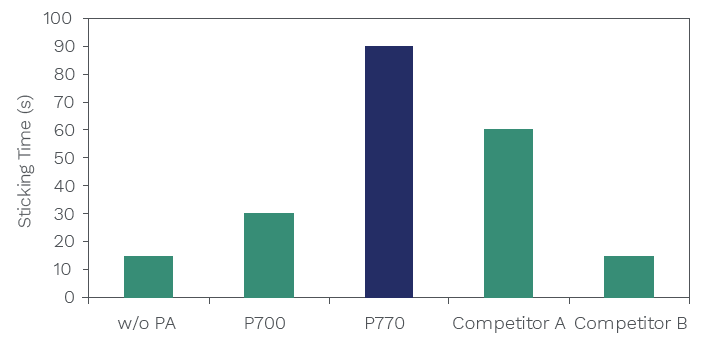

Superior efficiency of P770 PA (Processing temperature = 205°C)
Transparent formulation, organotin stabilized, processed on a two-roll mill equipment (diam 150), with 1.2 phr of process aid
Optimized output
The use of it process aid enables manufacturers of rigid vinyl products to eliminate excessive downtime due to sticking and burning of processed compounds, with limited effect on PVC fusion and rheology.PROPERTY NEAT PVC
COMPOUNDS+ 1.2 PHR P770 PA Melt viscosity
(x1000 Pa.s)3.60 3.70 Fusion time at 170°C (s) 225 210 Better value in use
- The unique design and chemical composition of it process aid makes it more efficient than any other type of anti-sticking process aid.
- This higher efficiency can be used to either improve quality or to generate cost savings by dosage reduction.
Applications & Uses
- Markets
- Applications
- Compatible Polymers & Resins
- Plastics & Elastomers End Uses
- Plastics & Elastomers Processing Methods
- Suggestions For Use
- Plastistrength® 770 process aid is recommended for PVC and CPVC applications where good metal release from process equipment is required such as high-speed extrusion, calendering, injection molding and blow molding.
- It is commonly used in PVC formulations for food or pharmaceutical packaging.
- Dedicated information on formulation and regulatory status is available upon request.
- Customers should evaluate it process aid in their own laboratories to establish optimum conditions for use in their processes and applications.
- Arkema’s Technical Service Team is available to discuss your application requirements, provide formulation guidance and laboratory testing as needed.
Properties
- Physical Form
- Appearance
- White Powder
- Typical Physical Properties
Value Units Test Method / Conditions Particle Size (retained on 40 mesh) max. 2 % Specific Gravity 1.11 - - Bulk Density 0.5 g/cm³ - Volatile Content 1 wt% - - Typical Properties
Value Units Test Method / Conditions Melt Viscosity (neat pvc compounds) 3600 Pa.s - Melt Viscosity (+ 1.2 PHR P770 PA) 3700 Pa.s - Fusion Time (at 170°C, neat pvc compounds) 225 seconds - Fusion Time (at 170°C, + 1.2 PHR P770 PA) 210 seconds - - SDS Physical and Chemical Properties
Value Units Test Method / Conditions Physical State Solid - - Physical Form Powder - - Color White - - Odor Very low, Monomers - - Melting Point approx. 300 °C - Auto Ignition Temperature approx. 440 °C - Decomposition Temperature min. 400 °C - Insoluble in (at 20°C) Water - - Density (at 20°C) approx. 1.130 kg/m³ - Particle Size (concentration: 50%) min. 122 µm - Bulk Density approx. 450 kg/m³ - Relative Density (at 20°C, Water=1) 1.13 - - Explosive Properties Dust may form an explosive mixture with air - -
Regulatory & Compliance
- Chemical Inventories
Technical Details & Test Data
- Technical Information
- Ask your Arkema account manager for further information on high quality Arkema additives for use in PVC, PC, PBT, ABS, PLA Epoxy, (meth)-acrylic and other polymer or thermosetting systems. Arkema produces a full line of impact modifiers and processing aids.
- In addition, Arkema’s Technical Service staff is also available to assist compounders and processors with formulation and processing advice.
Durastrength® Impact Modifiers
Durastrength® acrylic impact modifiers deliver outstanding impact characteristics for outdoor durable applications in PVC and Engineering Resins.Plastistrength® Process Aids
- Plastistrength® 770 Process Aids offer producers a complete line of melt strengtheners and metal release agents for PVC and Engineering Resins.
- Plastistrength® 770 process aids can improve fusion, surging, and aesthetics.
Clearstrength® Impact
- Clearstrength® Impact Modifiers are designed for extreme impact or impact/clarity combination in PVC and Engineering Resins.
- Clearstrength® Impact Modifiers provide superior toughening effect in epoxy and (meth)-acrylic resins.
Biostrength® Additives
Biostrength® product line of impact modifiers, melt strengtheners and metal release agents are designed to improve properties and enhance processability of polylactic acid (PLA) and other biopolymers compounds.
Packaging & Availability
- Country Availability
- Packaging Type
- Packaging Information
Plastistrength® 770 process aid is packaged in 20 kg bags (500 kg per pallet), 500 kg bulk bags (1000 kg per pallet) and 1000 lb bulk bags.
