Umicore Zinc Metal Pigment 4P32

1 of 2 products in this brand
Umicore Zinc Metal Pigment 4P32 is a high-purity zinc powder produced using a unique atomization process. It ensures a stable particle size diameter, meeting the stringent requirements of ASTM 520 Type III. This grade is ideal for manufacturing zinc primers and shop primers, such as inorganic ethyl silicate and epoxy primers.

Chemical Family: Zinc & Zinc Compounds

Pigment Type: Inorganic Pigments

CI Name: Pigment Metal 6

Synonyms: Zn

Enhanced TDS

Identification & Functionality

Features & Benefits

CASE Ingredients Features

Applications & Uses

Properties

Physical Form
Typical Properties
ValueUnitsTest Method / Conditions
Brunauer–Emmett–Teller0.4m²/g-
Tamped Density3.6g/ccISO R/787
Bulk Density2.2g/ccASTM B329-06
Oil Absorption6%ASTM D281
SDS Physical and Chemical Properties
ValueUnitsTest Method / Conditions
Dynamic Viscositymin. 500mPa.s-
Density7.14g/cc-
Flammability (Solid, Gas)Combustible--
Boiling Point908°C-
OdorOdorless--
Insoluble inWater--
AppearanceSolid Gray Powder--
Particle Size Distribution
ValueUnitsTest Method / Conditions
Sieve Residuemax. 0.01%ISO 3549
Cut Off Diametermax. 32μm-
Average Particle Size4.7 - 7.4μm-
Average Particle Size3.9 - 4.9μmASTM B330-07
Heavy Metals
ValueUnitsTest Method / Conditions
Iron Contentmax. 0.002%ISO3549
Cadmium Contentmax. 0.001%ISO3549
Lead Contentmax. 0.003%ISO3549
Metallic Zinc Contentmin. 97%ISO3549
Total Zinc Contentmin. 99%Calculated

Regulatory & Compliance

Chemical Inventories
Quality Standards

Technical Details & Test Data

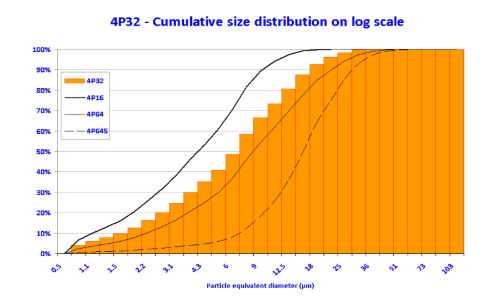

4P32 - Cumulative size distribution on log scale

4P32 - Cumulative size distribution on log scale
Umicore Zinc Metal Pigment 4P32 - 4P32 - Cumulative size distribution on log scale - 1

4P32 - Size distribution on log scale

4P32 - Size distribution on log scale
Umicore Zinc Metal Pigment 4P32 - 4P32 - Cumulative size distribution on log scale - 1

Packaging & Availability

Packaging Information

(UN approved) : 25 kg paper bags - metal drums (50-100 kg) & pails - bulk bags. Avoid stacking bagged product, as excessive compression is detrimental to dispersion.

Storage & Handling

Shelf Life
12 months
Storage Information

Store indoor in a dry ventilated location. To maximize the shelf life and maintain product integrity, do not open the container until the material is to be used.
