Edenol® 9789 is a polymeric plasticizer based on azelaic acid. It is compatible with polyvinyl chloride (PVC) and offers outstanding weatherability, migration resistance, and low volatility. Commonly used in wire insulation, it functions as both a tackifier and plasticizer in plastics and elastomers.

Functions: Plasticizer, Tackifier

Compatible Polymers & Resins: Polyvinyl Chloride (PVC)

End Uses: Wire Insulation

Technical Data Sheet

Enhanced TDS

Identification & Functionality

Chemical Family
Manufactured By
Plastics & Elastomers Functions
Technologies
Product Families

Features & Benefits

Applications & Uses

Compatible Polymers & Resins
Plastics & Elastomers End Uses
Use Level
10 - 40phr
Properties and Applications

Edenol® 9789 is a high molecular weight plasticizer with superior migration resistance, which pro- vides the optimum in permanence properties for PVC formulations. It is widely used as a trackifier and calender tacking aid. Edenol® 9789 is also used in high-temperature wire insulation where low volatility, compatibility and color are particularly important. Edenol® 9789 is used in PVC cast film applications when excellent weatherabiltiy is requested.

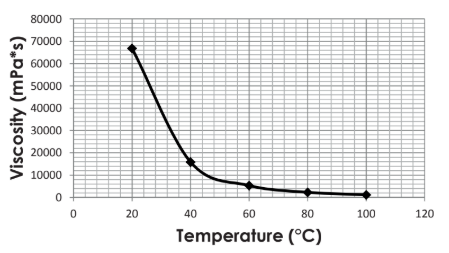

Viscosity

Durastrength® 4000 - Typical Starting Formulation Recommendations - 1



Properties

Appearance
Yellow, highly viscous, liquid
Typical Properties
ValueUnitsTest Method / Conditions
Color0 - 4-Gardner, DGF C-IV 4c
Hydroxyl Value0 - 22mg KOH/gDIN 53240
Acid Value0 - 5.0mg KOH/gDIN EN ISO 2114
Viscosity (at 100°C)1020 - 1242mPa.sDIN 53019

Packaging & Availability

Packaging Information
  • Bulk, liquid
  • IBC tote, liquid
  • Drum, liquid

Storage & Handling

Shelf Life
24 months
Storage and Handling Information

It is recommended to store EDENOL® 9789 at room temperature and to protect the product against the effects of heat and frost. If stored in sealed original containers, EDENOL® 9789 should be stable for at least 24 months from the date of manufacture.
