NAN YA NPES-903 is a solid epoxy resin of medium molecular weight, synthesized from epichlorohydrin and bisphenol A. Specifically designed for powder coating applications, it, when cured with polyester or dicyandiamide, offers excellent properties such as high gloss, flexibility, and smoothness.

Chemical Family: Dialkyl Ethers, Epoxy & Epoxy Derivatives

End Uses: Powder Coating

Features: Enhanced Surface Smoothness, Excellent Formulation Flexibility, High Gloss

Synonyms: 2,2-Bis(4-glycidyloxyphenyl)propane-2,2-bis(hydroxyphenyl)propane copolymer, 4,4′-Isopropylidenediphenol-Rutapox 0162 copolymer, Araldite GT 6750, Bisphenol A diglycidyl ether-bisphenol A copolymer, Bisphenol A diglycidyl ether-bisphenol A-dodecylphenol copolymer, Bisphenol A-bisphenol A diglycidyl ether copolymer, Bisphenol A-bisphenol A diglycidyl ether polymer, Bisphenol A-bisphenol A diglycidyl ether-piperidine copolymer, Di(4-hydroxyphenol)isopropylidene diglycidyl ether-di(4-hydroxyphenol)isopropylidene copolymer

Enhanced TDS

Identification & Functionality

Chemical Family
Chemical Name
Manufactured By
CASE Ingredients Functions
Technologies
Product Families
Product Composition

Diglycidyl ether of Bisphenol-A

Features & Benefits

Applications & Uses

Coating End Applications
Application Information

Powder coating

Properties

Physical Form
SDS Physical and Chemical Properties
ValueUnitsTest Method / Conditions
Insoluble in (at 20°C)Water--
Relative Density (at 20°C)1.16 - 1.18g/cc-
Flash Pointmin. 250°C-
AppearanceYellowish Solid--
Specifications
ValueUnitsTest Method / Conditions
Melting Viscosity (at 150°C)3000 - 5000cPs-
Softening Point90 - 98°C-
Colormax. 1.0-Gardner
Epoxy Equivalent Weight700 - 750g/eq-

Technical Details & Test Data

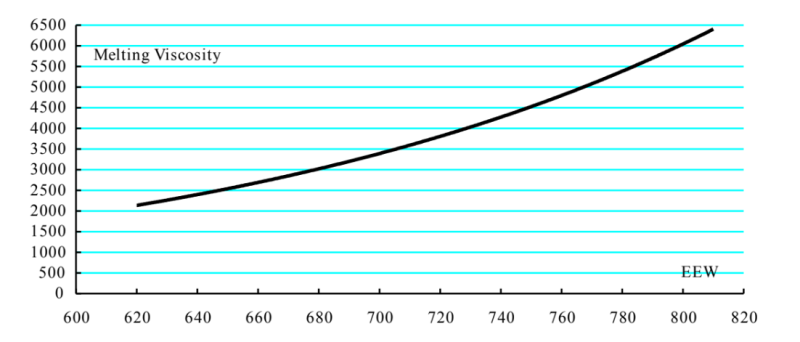

Viscosity vs EEW Characteristics (at 150°C)

NAN YA NPEL-128 - Viscosity VS. EEW Characteristics (at 150°C) - 1

Storage & Handling

Shelf Life
min. 12 months
Storage Information

At least 12 months shelf life in sealed package with dry and room temperature.

Handling Advice

May cause skin and eye irritation. In case of skin contact, wash immediately with soap and water. If on eyes, flush with plenty of water for 15 minutes and seek medical attention immediately.
